The hydropneumatic riveters Series 400 is the latest innovation by Rivit, a global company dedicated to setting high standards for fastening systems in the industrial, construction, and retail sectors.

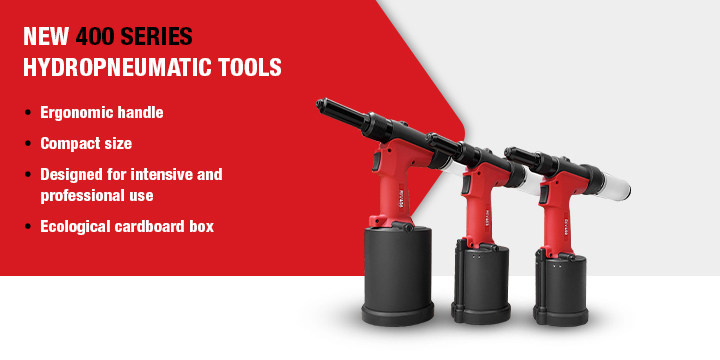

The new range of riveters consists of three references, RIV402, RIV403 and RIV406, all equipped with an ergonomic handle, steel cone, robust pull start button, air supply connection, integrated suction system, non-slip rubber base and semi-transparent container for collecting mandrels.
The riveters are designed to place blind rivets of different sizes on the most popular surfaces and materials from plastics to wood, including electrical panels, building materials, solar panels and insulated roofs.
- RIV402 is the entry-level model, featuring an 18mm stroke and 9230 Newton force. The range of blind rivets that can be placed by this tool goes from a diameter of 3.2 to 4.8mm. Easy to use due to its lightweight (1.3 kg), RIV402 is ideal for placing Goriv, Standard, Sealed, Treriv and Masriv blind rivets of the Emilian company.
- RIV403 increases the range of installable blind rivets, including the Multigrip and Fioriv’s. The ideal blind rivets to place with this tool are those with diameter from 4.0 to 6.4mm. The weight of this riveter is 1.45 kg, which is still very low when compared to the performances of the tool; the stroke is 20mm, with a force of 11800 N, ensuring excellent fastening performance.
- RIV406 is the most powerful model, placing rivets with diameters from 4.8 to 6.4mm, of the Standard, Sealed, Multigrip, Fioriv, Treriv, Goriv, Gtreriv, Rivbu, Rivinox and Masriv types. The stroke of the riveter is 25mm and reaches a force of 18500 N. Weighing 2.10 kg, the tool is equipped with a more important mechanical structure than the other two models, allowing for more power to ensure high levels of performance in even the most challenging applications.
The three models come complete with nozzles of different diameters, balancer hook, air connection, oil syringe and 12-14 mm wrench included in the new eco-sustainable packaging, made of 100% recyclable cardboard.
