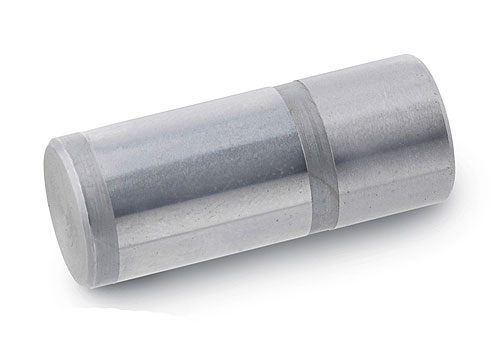

J.W. Winco, Inc. now offers series GN 771.1 Locating Pins in metric sizes. These RoHS compliant components are normally used in conjunction with DIN 172 / DIN 179 drill bushings.
The tolerance of the pin diameter insures a perfect press fit into an H7 tolerance mounting bore, while the chamfer of the pin makes installation easy. The pins are made of steel, hardened to HRC 60 +/-2 and ground. Diameters run from 4 to 16 mm.
